How CRT techniques work, Explain its advantages and dis-advantages and its type?

How CRT techniques work. Explain its advantages and disadvantages and its type?

Random Scan System

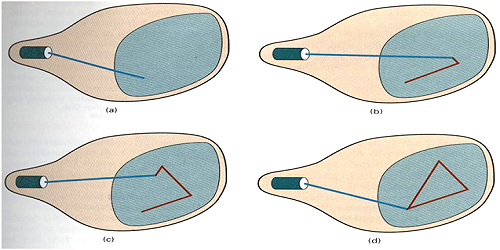

When worked as an irregular output show unit, a CRT has the electron beam coordinated just to those parts of the screen where a photo is to be drawn. Irregular sweep screens draw a photo one line at any given moment and thus are additionally alluded to as vector show (or stroke-composing or calligraphic presentations). The part lines of a photo can be drawn and refreshed by an irregular output framework in any predetermined request.

The refresh rate on an irregular sweep relies upon the quantity of lines to be shown. Picture definition is currently put away as an arrangement of line-attracting summons a range of memory alluded to as the refresh display file. Sometimes the refresh display file is called the display listdisplay program, or simply the refresh buffer.

How CRT techniques work

How CRT techniques work. Explain its advantages and disadvantages and its type?

To show a predetermined picture, the framework goes through the arrangement of orders in the show document, drawing every segment line thusly. After all the line drawing charges have been prepared, the framework cycles back to the primary line order in the rundown.

Random scan system is intended to draw all the part lines of a photo 30 to 60 times each second (implies refresh rate is 30 Hz to 60 Hz). Astounding vector frameworks are equipped for taking care of around 1, 00,000 “short” lines at this refresh rate. At the point when a little arrangement of lines is to be shown, each refresh cycle is postponed to keep away from refresh rates more noteworthy than 60 outlines for every second. Something else, speedier refreshing of the arrangement of lines could wear out the phosphorus.



How CRT techniques work. Explain its advantages and disadvantages and its type?

Random scan system is intended for line-drawing applications and can not show sensible shaded scenes. Since picture definition is put away as an arrangement of line-drawing directions and not as an arrangement of power esteems for all screen focuses, vector shows, for the most part, have higher determination than raster frameworks.

Likewise, vector shows create smooth line illustrations on the grounds that the bar straightforwardly takes after the line way. A Random scan system, interestingly, produces rugged lines that are plotted as discrete point sets.

How CRT techniques work. Explain its advantages and disadvantages and its type?

Advantages of Random Scan Display: –

  1. A CRT has the electron beam coordinated just to the parts of the screen where a photo is to be drawn.
  2. Produce smooth line illustrations
  3. High Resolution

Disadvantages of Random Scan Display: –

  1. Random-Scan screens can not show sensible shaded scenes.

Difference between Vector Scan Display and Raster Scan Display

Random Scan/Vector Scan DisplayRaster Scan Display
In Vector scan display the beam is moved only to those parts of the screen where a picture is to be drawn.In raster scan display the electron beam is moved over the screen one scan line at a time, from top to bottom and then back to top.
Vector display flickers when the number of primitives in the buffer becomes too large.In raster display, the refresh process is independent of the complexity of the image.
Cost is more.Cost is low
Vector display only lines and charactersRaster display has the ability to display areas filled with solid colors or patterns.
Higher resolution.Less Resolution
Produce smooth Line drawingsProduce Jagged Lines
Less ColorMore Color
